SPIRAFLEX

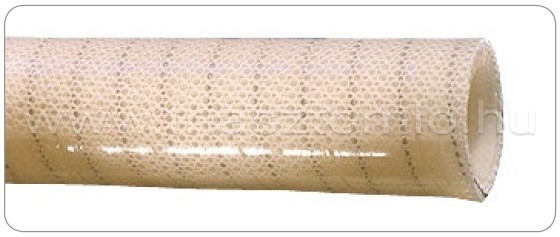

Silicon hose with fabric insertion and steel helix reinforcement
Technical specifications:

The hose has fabric insertion and steel helix reinforcement.

The VMQ silicon hose is according to the FDA 21 CFR 177.2600 and BGA Class XV regulations. It’s vulcanized with platinum catalyst.


silicon hose - fabric insertion - steel helix

Heat resistance: -60°C /+180°C, rövid ideig 200°C, -60°C / +180°C , for short time +200°C

Structure: transparent and smooth silicone, with three polyesther fabric reinforcement, and steel helix

Vacuum: - 0,9 bar

Application: for pressure, vacuum, compensate the vibration and level difference

Manufacture length: 4 m



Certain diameters are available from stock. Meantime, we hold the right of selling the stock in products.

Inside
Ø (mm)		 Outside
Ø (mm)		 Bending
radius (mm)		 Operating
pressure on 20°C (bar)		 Bursting
pressure on 20°C (bar)		 Article
number		 Quote
request for the entire size scale
10 21 34 22 65,9 189069 Request a quote
13 24 39 19,9 59,7 189077 Request a quote
16 27 45 18,3 54,8 189054 Request a quote
19 30 54 16,5 49,6 189949 Request a quote
25 36 68 14,8 44,3 189936 Request a quote
32 43 94 12,8 38,5 189056 Request a quote
38 49 112 11,5 34,5 189938 Request a quote
51 62 144 9,2 27,5 189057 Request a quote
63 74 181 7,5 22,6 189080 Request a quote
