Technical specifications:
Other sizes are available for request. Size scale: DN 3-50 mm.

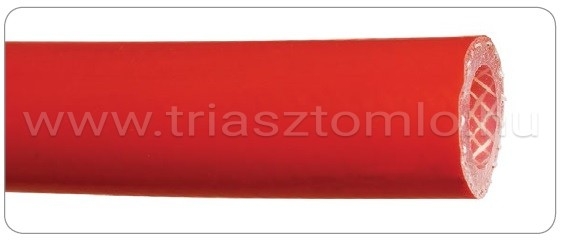

silicon hose - fabric reinforcement
Heat resistance: -40°C / +160°C for the polyesther lining designed (up to 15 inside Ø mm), -40°C / +180°C glass fibre reinforcement designed (over 15 inside Ø mm)
Interior: transparent, smooth, USP class VI.
Exterior: red, smooth
Hardness: 70° Shore A
Quality: inside FDA CFR§ 177.2600 and BGVV
Storage lots, splitting of the rolls are possible. Meantime, we hold the right of selling the stock in products.
| Inside Ø (mm) |
Outside Ø (mm) |
Wall thickness (mm) |
Operating pressure (bar) |
Fabric reinforcement material |
Heat resistance |
Article number |
Quote request for the entire size scale |
|---|---|---|---|---|---|---|---|
| 4 | 9 | 2,5 | 13 | polyesther | +160 °C | 189032 | Request a quote |
| 6 | 18 | 3 | 12 | polyesther | +160 °C | 189924 | Request a quote |
| 9,5 | 16 | 3,25 | 12 | polyesther | +160 °C | 189944 | Request a quote |
| 10 | 18 | 4 | 12 | polyesther | +160 °C | 189928 | Request a quote |
| 12,5 | 20,5 | 4 | 10 | polyesther | +160 °C | 189921 | Request a quote |
| 19 | 30,6 | 5,5 | 6 | glass fibre | +180 °C | 189922 | Request a quote |
| 25 | 37 | 6 | 5 | glass fibre | +180 °C | 189920 | Request a quote |
